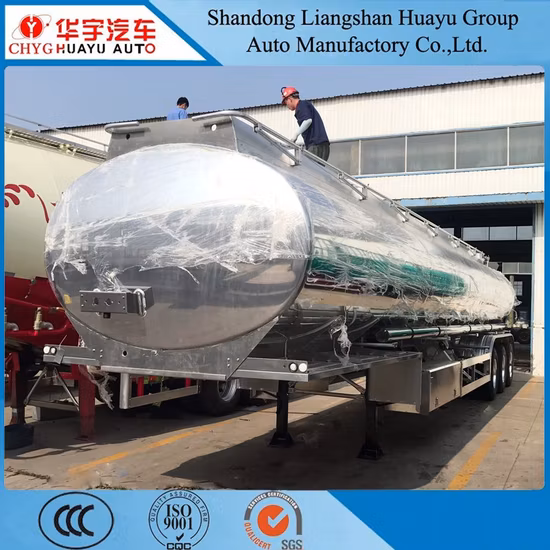

3-Axle 39000L Air Suspension with Lifting Aluminum Alloy Oil Tank Semi Trailer

Basic Info

Model NO.	LMC940G30L02
Type	Semi-Trailer
Load Capacity	39000L
Certification	ECE, GCC, ISO9001, DOT, CCC, ISO/TS16949
Wheel Base	1350mm
Tread	1840mm
Grade	Light Duty
Independent Suspension Type	Air Suspensions
Shape	Barrel Type
Axle Number	3
Tire Number	12
Self-dumping	Not Self-dumping
ABS Anti-lock Braking System	ABS Anti-lock Braking System
Material	Aluminum
Condition	New
Axle	Ylt Brand
Tire	11r22.5
Rim	8.25-22.5
Materials	Aluminium Alloy
Suspension	Air Suspension
Discharge Valve	API
King Pin	Jost 2′ Bolting Type
Light	LED
Paiting	High Grade Polyurethane Paint
Landing Gear	Jost
Transport Package	by Bulk Ship / Container Ship
Specification	13450mm2490mm3550mm
Trademark	CHYG
Origin	China
HS Code	87163990
Production Capacity	9000PCS/Year

Product Description

Product Description And Specification
3-Axle 39000L Air suspension With lifting Aluminum Alloy Oil Tank Semi Trailer.

Product Description
External dimension	13450mm×2490mm×3550mm
Tank body	Aluminum alloy 6mm
End plate	Aluminum alloy 7mm ball shape
Axle	Number	3	Brand	YLT	Capacity	14T
Suspension	Air suspensions With lifting
Leaf spring	Air bag
Tire	11R22.5
Wheel rim	8.25-22.5 Aluminum alloy wheel rim optional upon choice
King pin	2' bolt-in type
Landing gear	JOST, A200C
Manhole cover	500mm manhole cover .5 sets with breather valve
Oil and gas recovery system	with
Discharge valve	5 set of Φ100mm API discharge valves, With protective cover
Discharge pipe	4"rubber hose ,2 pcs ,one is 10m long
Compartment	5
Braking system	Wabco re6 relay valve; t30/30 spring brake chamber ;40l air tanks
Electrical system	Voltage 24v, receptacle 7 ways (7 wire hamess); led light, one set 6-core standard cable.
Main beams	Opting for Aluminum alloy welded buy automatic submerged-arc processes
Accessories	One standard tool box
spare tire carrier	two
spare tire	one

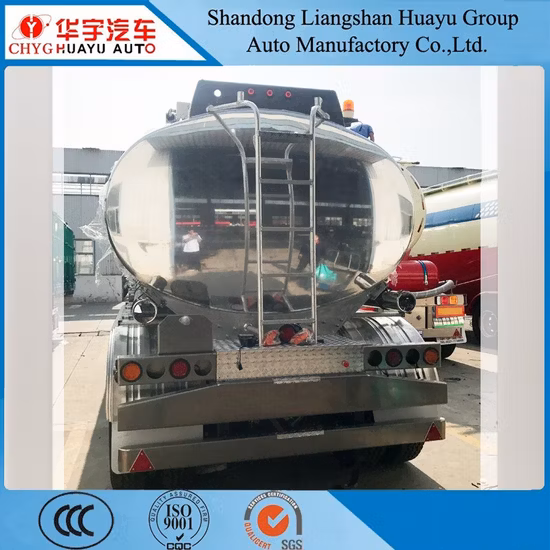

3-Axle 39000L Air Suspension with Lifting Aluminum Alloy Oil Tank Semi Trailer

Partial Close-Up

Normal Procedure1 .Cutting: Use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing2. Welding: After steel cutting process the next step is welding .this process the main work is beam welding .the top plate-bottom plate and the middle plate will be welding together . this process will be use submerged arc welding process.this type of welding is very special .its exclusively used in i beam welding .after this welding process other parts of the trailer will be use different welding way for different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on3. Assembly: After all the process we have mationed .the last procedure of the trailer is assembly.this process all the parts will be assemly .it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity wiring-brake system and so on 4. Packing : The last process is packing .all the trailer use different packing way as customer requirment.after packing the trailer can be on the way to the customer

Trailer Advantages Description. The main components of the trailer are processed by advanced equipment, and the Main beam is welded by automatic submerged arc welding machine. All components are sandblasted to improve the paint adhesion.. The chassis is welded with the best structure to improve the ability of handling goods and increase the effective load· More than 20 years professional design and production experience.· Choose Regular manufacturers purchase material.· Use Domestic first-class production equipment. Main beam is using Submerged arc welding process.· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.· Strict quality control system ensure that each semi trailer is qualified.

We can provide all the models you need and support customization. If you have any questions, please leave your inquiry.
International Market
1 .China market before the year of 2005.we can produce about 12000 pcs one year 2. In the year of 2008 we do the national business .untill now we can export 4000pcs semi-trailer one year 3. South Africa exhibation in the year 2010 4. Russia truck and trailer parts exhibation in the year 2012 5. Germany auto trailer parts exhibation in the year of 2015 6. America trailer parts exhibation in the year 2014

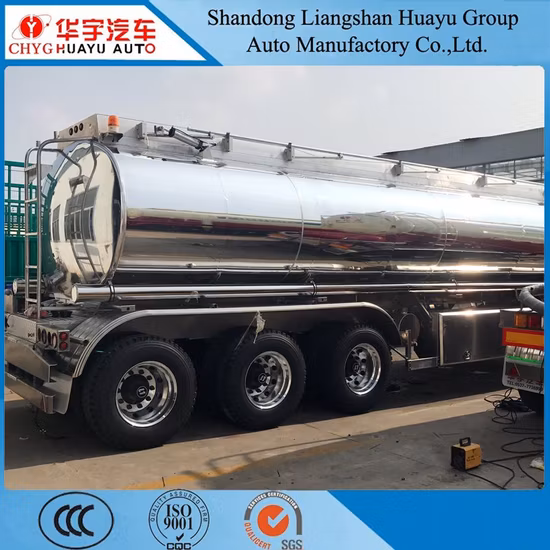

3-Axle 39000L Air Suspension with Lifting Aluminum Alloy Oil Tank Semi Trailer
